- Scanning Light Source: Laser Light
- Novelty: New
- Product Type: Portable Scanner
- Model Number: RT-I86/I86H
- Scan Breadth: A4
- Type: Handheld Scanners
- Interface Type: USB
- Scan Element Type: CMOS
- Scan Speed: 200 scans/second
- Optical Resolution: 1920*1200
- Brand Name: RUGLINE
- Origin: Mainland China
- Certification: CE,RoHS
- I86 CPU: Intel Baytrail-T(Quad-core),Z3735F 1.33-1.8GHz CPU(I86)
- I86H CPU: Intel cherrytrail Z8350 1.44Ghz-1.92GHz CPU(I86H)
- OS: Windows 10 Home/IOT/Pro optional
- Display: 8 inch 800*1280/1920*1200 IPS 450Nit/800Nit /1920X1200 IPS 450Nit
- Camera: Front 2MP, Rear 5MP Camera
- Memory: I86-2G RAM 64G ROM;I86H-4G RAM 64G ROM
- Battery: 3.7V/8500mAh
- Communications: Wifi / 4G/ BT/GPS

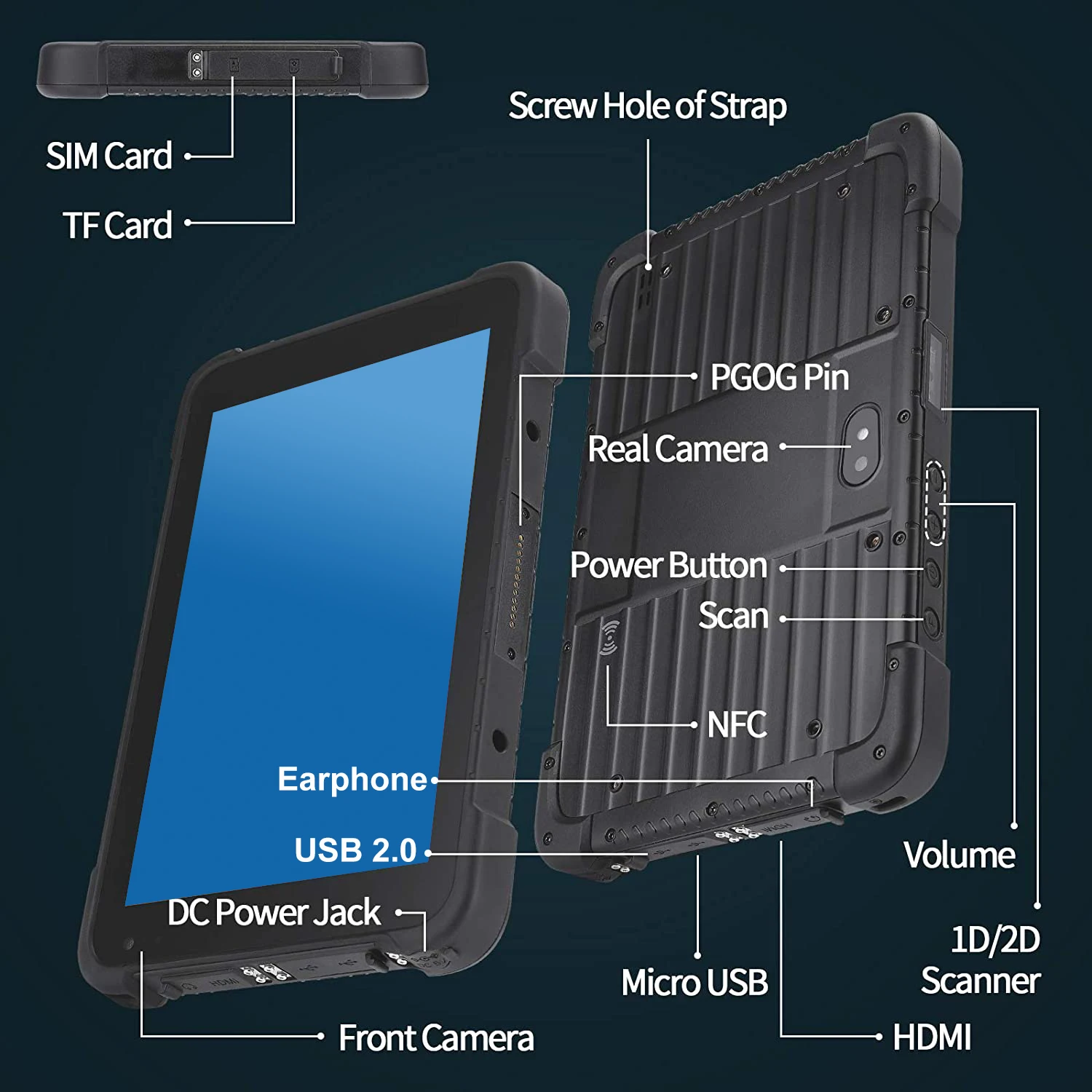

- Interfaces: TF slotX1;USB2.0 interfacex1;Earphone Jackx1;DC Jackx1;HDMI interfacex
- Customized functions: 1D/2D Barcode Scanner
Note: This link windows is Windows 10 home,if need IOT/Pro version,please contact seller.
There are two version band ,if you need it place order and leave a message ,we will fellow you
European version :
2G Gsm 900/1800MHZ
3G WCDMA 900/2100MHZ
4G LTE B1/B3/B7
American version optional :Â
   LTE TDD: B40
3GÂ WCDMA:Â B1/B2/B5/B8
2GÂ GSM:Â B2/B3/B5/B8
|
Standard Version Hardware Spec |
||||
|
CPU |
intel CPUÂ Â Quad-core |
|||
|
Operation System |
Windows 10 Home OS/Android (optional) |
|||
|
Display Resolution |
8" 10 Points Touch Screen(10:16 1280×800 IPS) |
|||
|
RAM |
2GB/4G RAM |
|||
|
ROM |
64GB/128GB |
|||
|
Wi-Fi |
802.11 a/b/g/n(2.4G/5G Dual Band WIFI) |
|||
|
Camera |
Front Camera2.0MPBlackCamera 5.0MP |
|||
|
Bluetooth BT |
BT4.0 |
|||
|
Battery |
3.7V/8500mAH (Built-in) |
|||
|
Speaker |
Built-in 8 /0.8Wx 1 |
|||
|
Sensor |
G-Sensor |
|||
|
3G/4G |
LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
|
|||
|

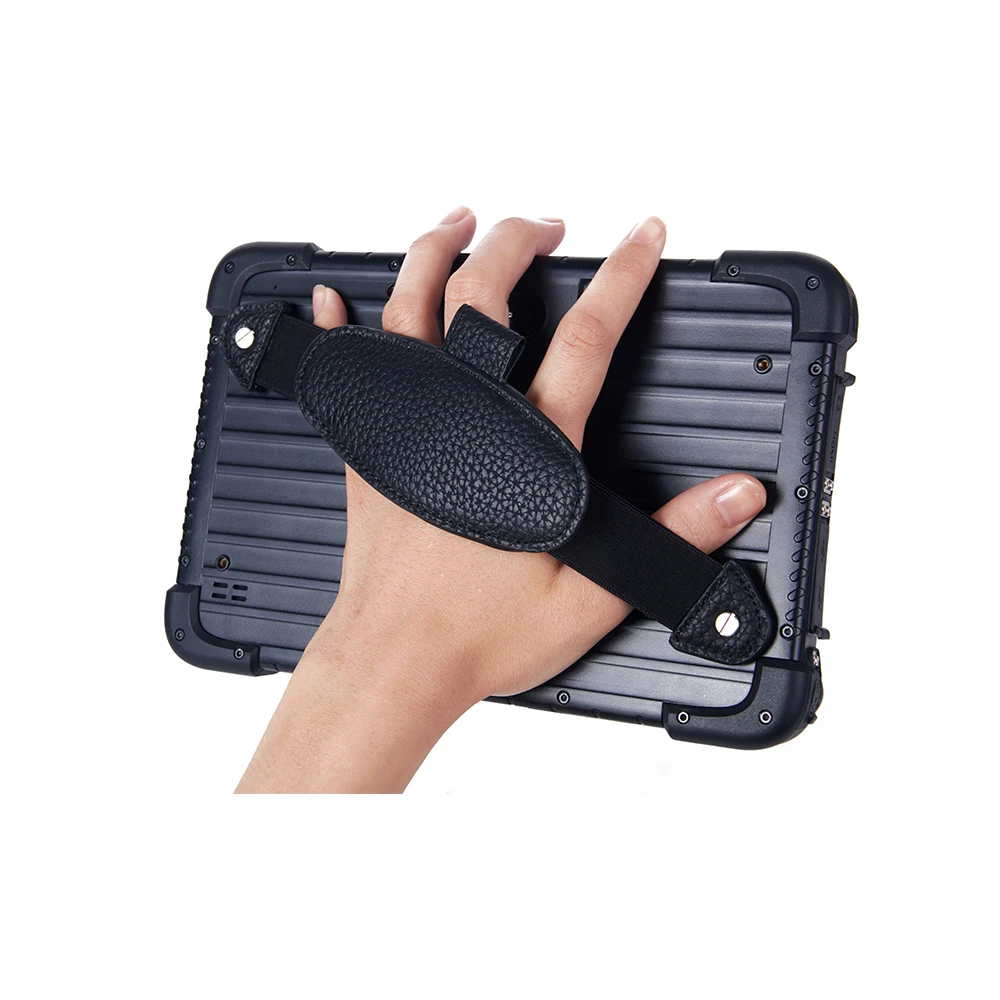

Hand strip |
Extensible Belt on The Back Case, Convenient to Hold |
|||
|

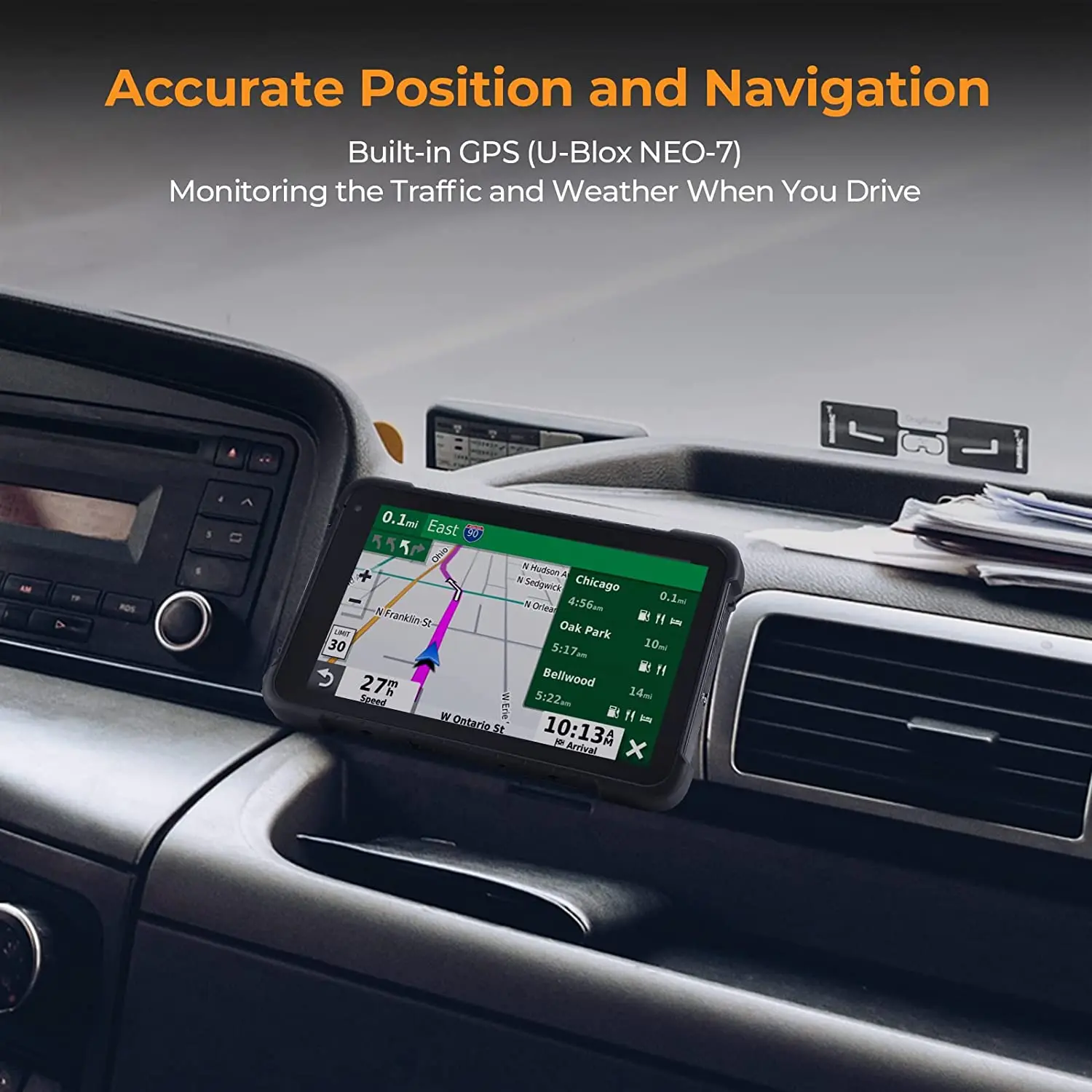

GPS |
Built-IN Ublox GPS Chip High Accuracy Module |
|||
|

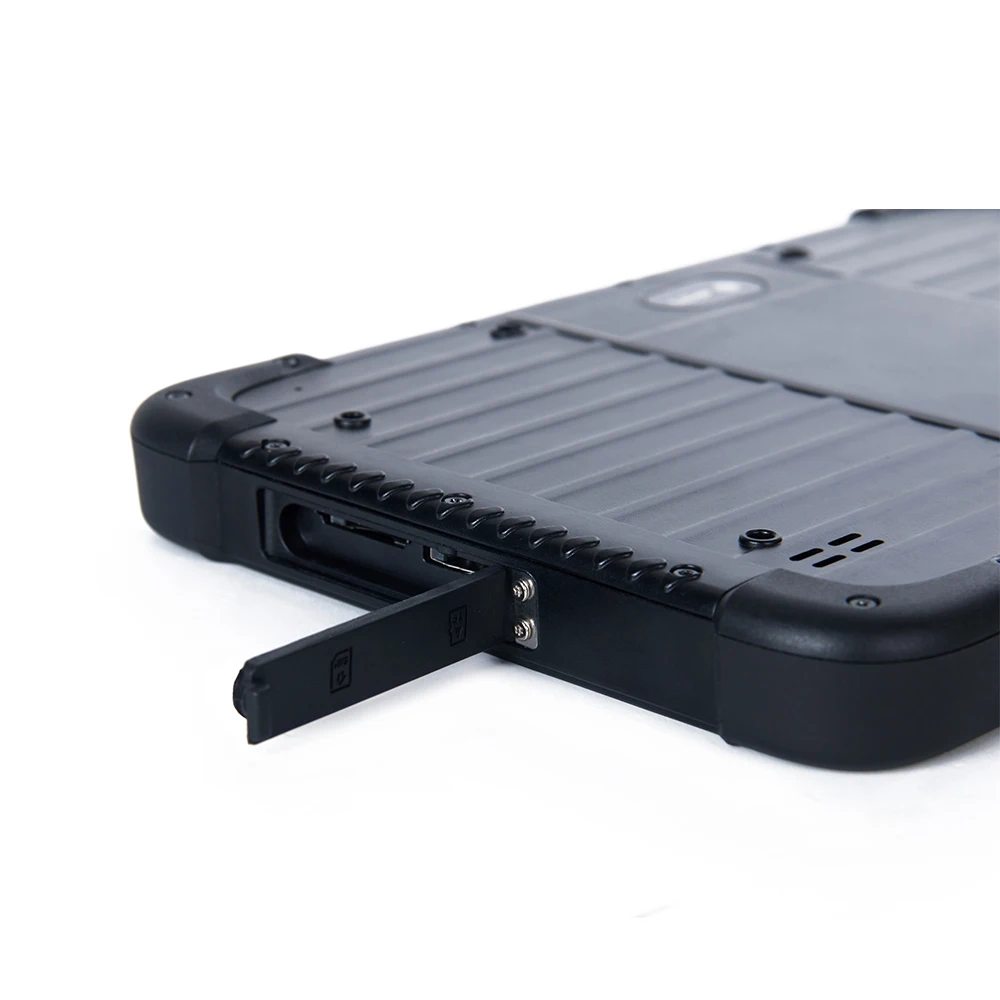

TF Slot |
Support SDHC/SDXC |
|||
|
USB Connector |
USB OTG |
|||
|
Headphone |
3.5mm |
|||
|
HDMI Connector |
Micro HDMI 1.4a |
|||
|
Optional Functions And Accessories(Contact US if You Need it) |
||||
|
Windows 10 Home Pro |
32Bit or 64Bit |
|||
|
1D Barcode Scanner |
Choose Optional : 1D Barcode Scanner |
|||
|
1D+Â 2D Barcode Scanner |
Choose Optional : 2D Barcode Scanner |
|||
|
NFC |
Support NFC |
|||
|
128G EMMC |
64GB Upgrade to 128GB |
|||
|
Handwriting Types |
Goodix Capacitive Handwriting |
|||
|
Sunlight viewable AR FILM |
AR Film (only For OEM order) |
|||
|
Charger Dock |
Yes Support |
|||
|
Car  Holder |
Yes Support |
|||
