- Scanning Light Source: Laser Light
- Time to market: Mar-13
- Novelty: New
- Product Type: Bar Code Scanner
- Model Number: MJ2877Laser
- Colour Depth: 32 Bit
- Scan Breadth: A4
- Type: Barcode Scanner
- Interface Type: USB
- Scan Element Type: CMOS
- Scan Speed: 100 scans/second
- Optical Resolution: xx
- Brand Name: Eyoyo
- Origin: Mainland China
- Certification: CE
- size: 99*46*21mm
- power: 1000mAh lithium battery
- sensor: 2500pixels
- scan rate: 100 scans/sec
- Depth of field: 5-30 cm
- flash memory: 512M
- net weight: 50g
- Distance: 10 meters (visual distance)
- Tech of decoding: Laser line
- Max Paper Size: barcode
Note !It is laser line version.It can not support to scan screen barcodes.
Features:
1.Adopt 630nm Laser technology and intelligent image identification system.
2.Mini Portable Bluetooth Laser 1D Barcode Scanner with rechargeable 1000mAh Li-ion battery.
3.Support connection with smart phones, tablets, PC based on windows xp/7.0/8.0/WinCE, Windows Mobile, Android OS, iPhone/iPad etc.
5.Support HID virtual keyboard mode.
|
Specifications |
|
|
Dimension |
L*W*H:99*46*20mm |
|
Color |
Black |
|
Accessories |
USB Cable,1000mAh lithium battery, sling,Bluetooth reciever |
|
weight |
50g( without battery) 71g( with battery) |
|
Distance |
10 meters (visual distance) |
|
Bluetooth |
Bluetooth 3.0 Module |
|
Sensor |
2500pixels |
|
Light Source |
Laser line 630± 20nm |
|
Supported Symbologies |
Codabar,Code 11,Code 93,Full ASCII,ASCII,UPC/EAN, Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,ISBN,ISSN |
|
Postal code,Interleaved 2 of 5 |
|
|
Resolution |
4mil |
|
Depth of Field |
5~30CM |
|
Scan Rate |
500 scans/sec |
|
Temperature in operation |
0 C- 45 C |
|
Temperature in storage |
0 C- 45 C |
|
Humidity in operation: |
20 – 85% (non-condensing) |
|
Humidity in storage: |
20 – 85% (non-condensing) |

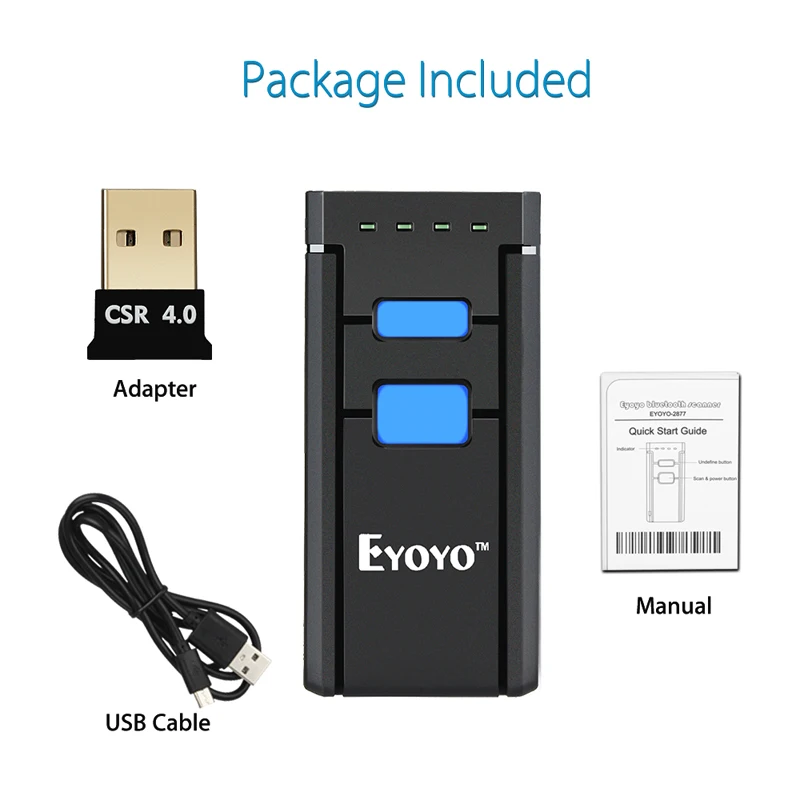

Package list:
Scanner *1 pcs
USB charging cable *1 pcs
Quick start guide *1 pcs
USB dongle *1 pcs
FAQ:
1. It can not connect with Android device ?
If the device is android 3.0 or above version,it can connect directly.
2. It can not recognize some type of barcodes?
Some inactive typebarcodes are disabled as factory default.So you should enable this tyoe via read tge ebable barcode.If you don’t know the type,pls contact out technical support.
3. Bracods can’t upload to PC or mobile after paired?
A:Please chekc is the pairing successfully?The indicator of scanner should be blue.
B:Please check if you enable inventory mode(under inventory mode,the barcodes need upload manually or read tge upload barcodefor upload)
4. PC or mobile phone can not search out it?
A:Confirm scanner is power on.
B:The scanner can pair only when blue LED is flashing.
5. Can It connect with mobile or tablet after connecting with PC?
If you want to change device,plesae clear the pairing information on the device first and reset it.The Method is according to front steps.
6. It can not connect autolly after restart the mobile device ?
A. Please make sure that there is no other BT connection with mobile device.
B. Power on scanner,it will connect with the mobile device automatically.
7. Can it auto linefeed during barcode scanning?
The user can set apply enter for suffix of barcode data or not ,please refer to the user manual.
